Outdoor Compact Fiber Optic NID
Compact NID wall mount fiber patch panel, gray plastic, suitable for Indoor/Outdoor, comes with special key for locking
The Hammer Series Fiber Optic NID is a compact, outdoor wall mount fiber termination and distribution enclosure. Designed for FTTx deployments, our outdoor fiber optic distribution box can accommodate select PLC splitters or loaded fiber pigtails using fusion splicing (up to 6 SC or 8 LC patch or splice fibers, or 12 patch-only LC fibers) The unit is designed to be mounted directly to the wall.

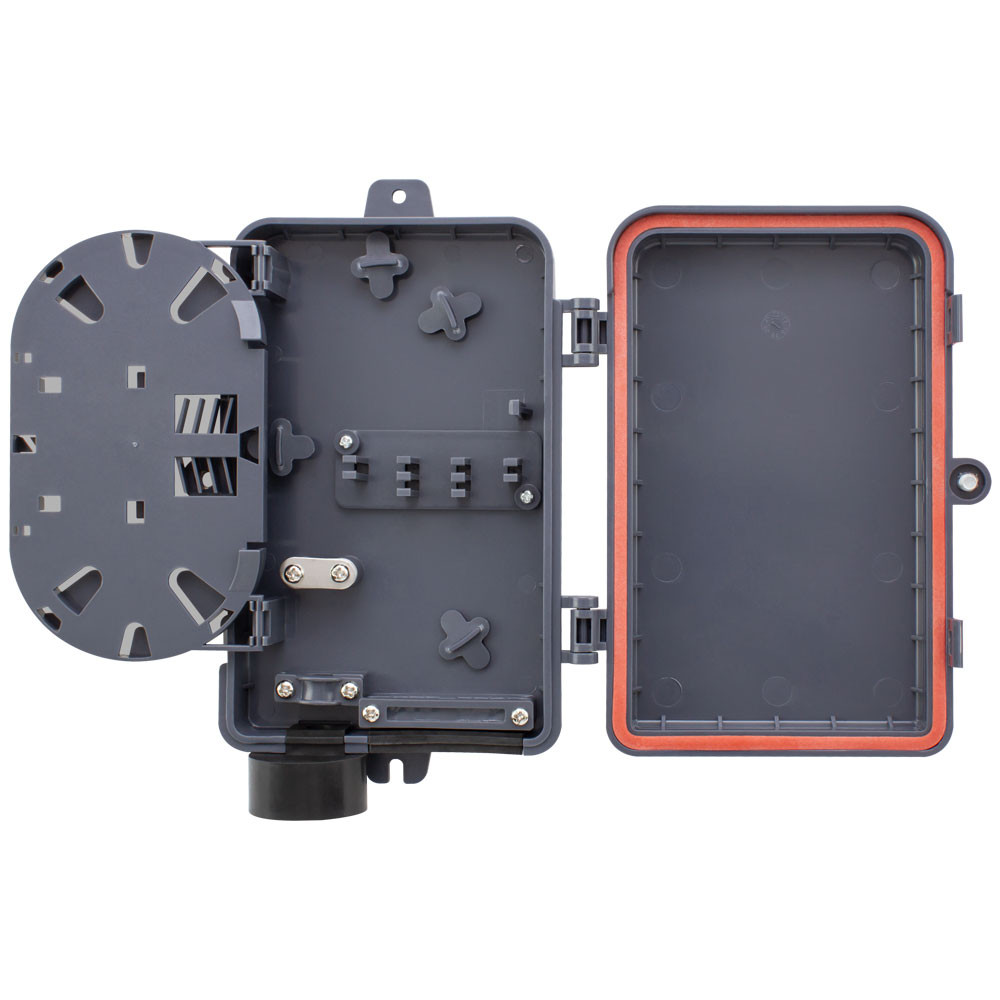

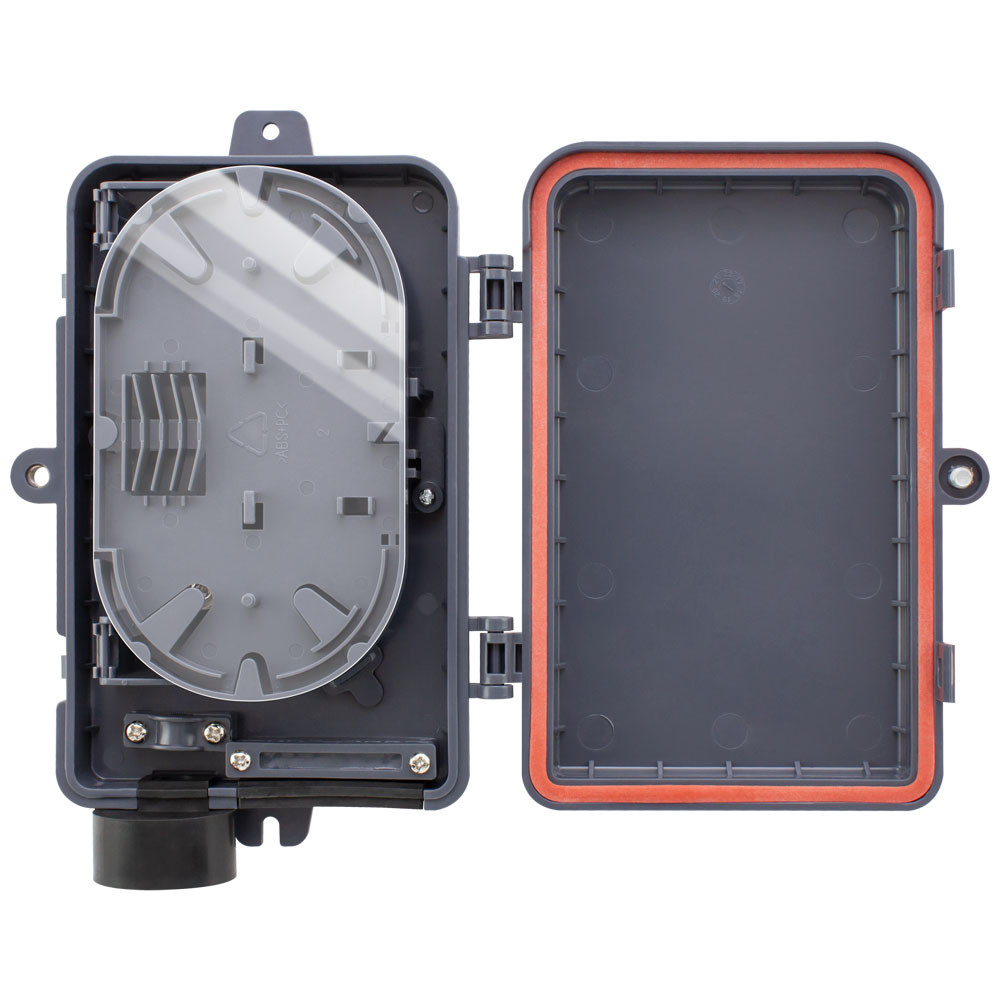

Includes area for storage, integrated splice tray, and separate area for fiber management with non-interfering door.
- Enclosure provides a secure location for slack storage and fiber connections
- Includes 2 wall anchors and screws to install directly on the wall
- Constructed of durable industrial plastic designed to withstand the harshest outdoor elements
Aesthetic appearance includes a glossy finish suitable for wall mounting on an office building or residence. Optional company logo silk screening available
Technical Specifications
| Brand | LYNN |
|---|---|
| Product Line | TheNID |
| Product Color | Gray |
| Product Material | ABS and Poly-carbonate Blend |
| Product Lifecycle | Active |
| Relative Humidity | 1% to 85% RH, Non-condensing |
| Operating Temperature Range | -20° C to 80° C (-4° F to 176° F) |
| Mounting Options | Wall Mount |
| Adapter Type | None, Simplex SC APC, Simplex SC UPC |
