Outdoor Fiberglass Enclosure with Network Connectivity Panel and Security Door

LYNN Hammer Series Wall Mount Fiber Enclosure, five LGX panel capacity, locking door, fiberglass

Designed for Fast FTTx Deployment and Extreme Climates

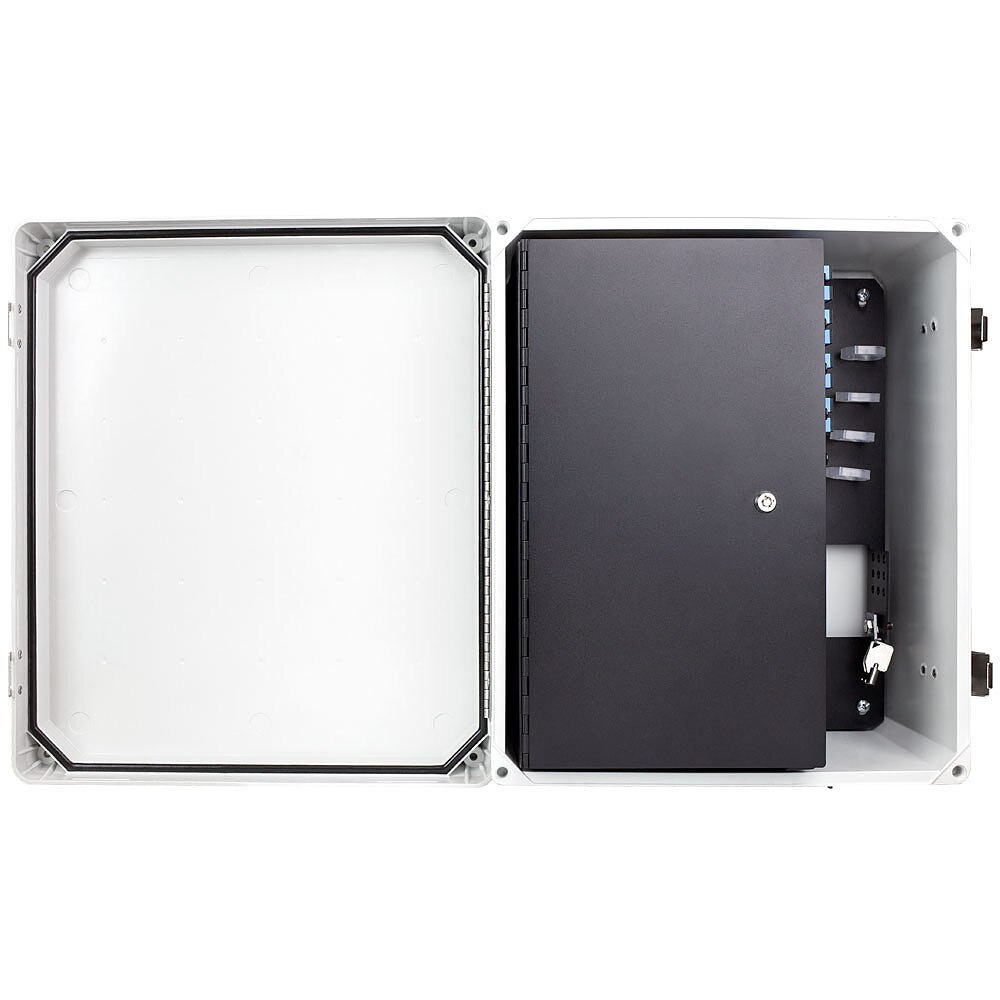

The Hammer Series Fiberglass Enclosure is a rugged outdoor wall mount fiber termination and distribution enclosure. Designed for extreme climates and FTTx deployments, this outdoor enclosure is constructed of tough fiberglass reinforced polyester (FRP) NEMA 4x and IP66 rated. Includes network connectivity panel with security door constructed of 1.5 mm steel (SPCC). Pigtails and adapter panels sold separately.

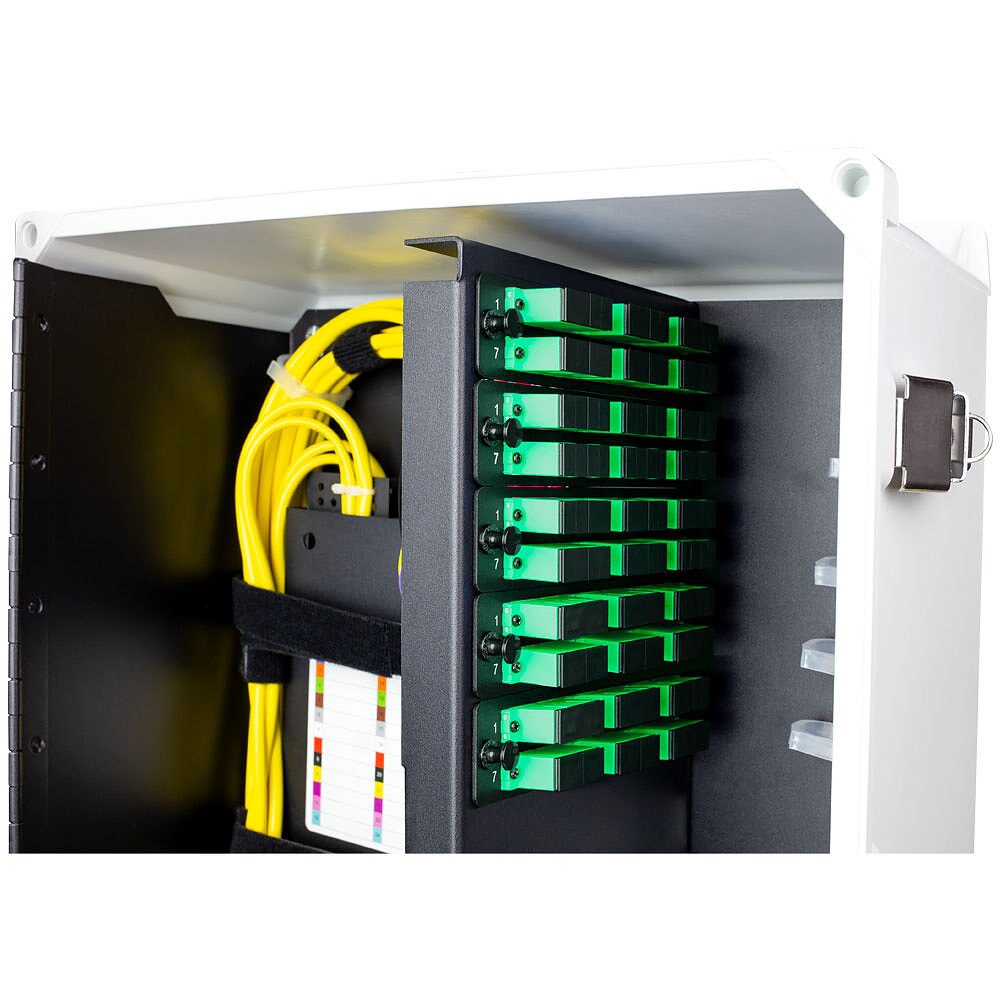

Supports up to 5 LGX adapter panels (60 fiber SC, 120 Fiber LC). Includes 4 half-moon cable managers, 8 cables manager rings, 2 Velcro ties, and 2 keys.  The unit is designed to be mounted directly to the wall.

• NEMA 4x and IP66 rated

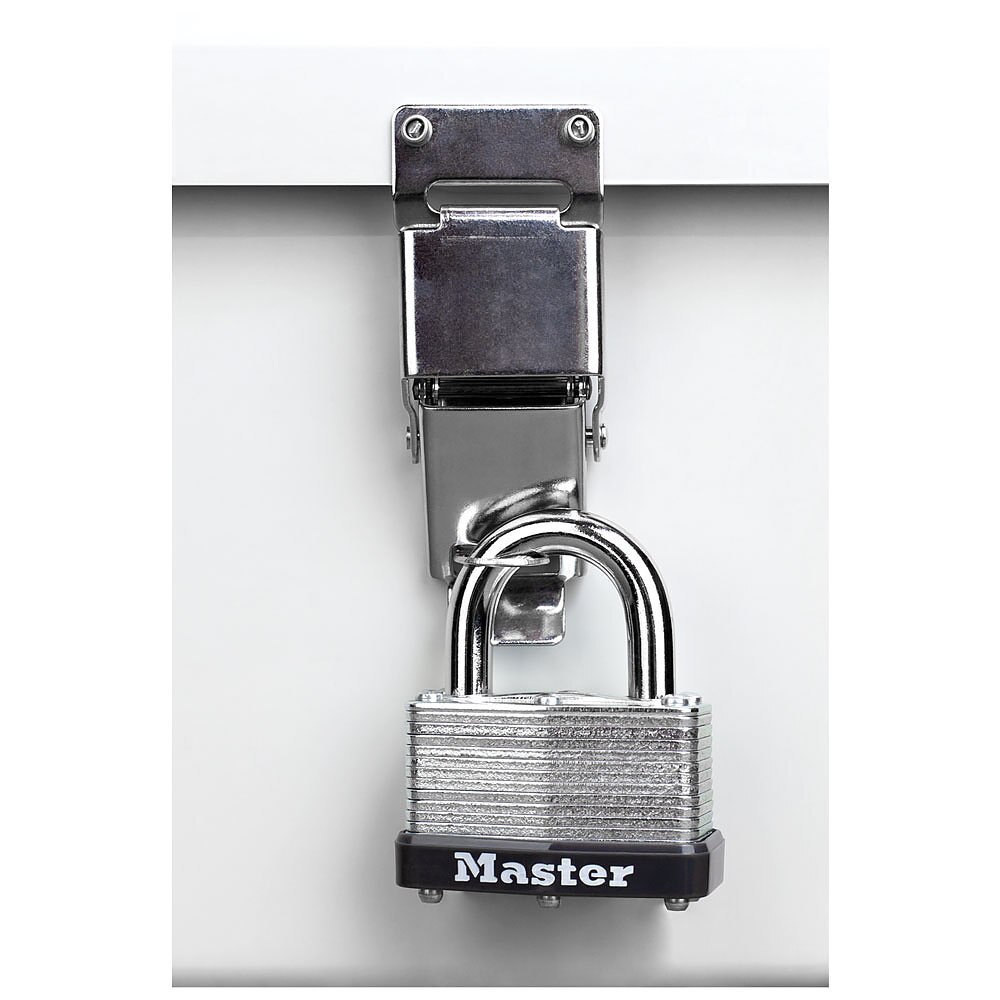

• Pad-lockable latches
• Supports multiple configurations for splicing, splitters, and patching
